System Features: TuneLink Auto for Android platform devices
|
|
|
|
|
|
|
|
|
System Requirements
- Android platform smart phone or tablet running Android 2.1 (or higher)
- [Android 2.2 or higher required for advanced Bluetooth features such as auto-reconnect, auto-play and advanced TuneLink Share mode]
- 12V car accessory outlet
- Vehicle audio system with FM radio or auxiliary line level input

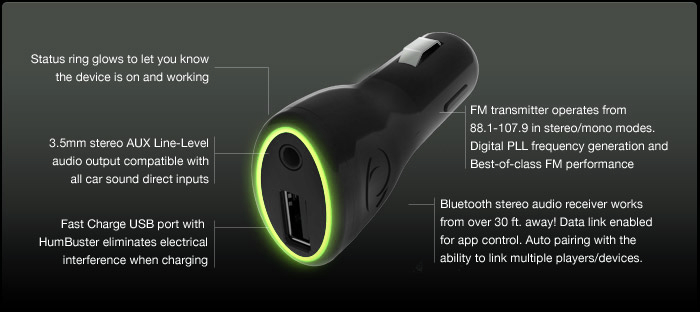

TuneLink Appessory
- Bluetooth Interface
- Hi Quality A2DP stereo audio receiver
- Works over 40 feet from your player
- Data link enabled for app control
- Auto-pairing function, no codes needed
- Automatic reconnect on power up
- Direct Audio Input
- 3.5 mm auxiliary jack
- Line-level audio output
- Compatible with all car sound direct inputs
- HUMBUSTER equipped:
- Eliminates vehicle electrical interference when charging your device while listening to music
- FM Transmitter
- Best-of-class FM performance
- 88.1 - 107.9 MHz, 200 KHz steps
- Stereo / Mono operation
- Crystal controlled, Digital PLL frequency generation
- Fast Charge USB Port
- 5 VDC, 2.1 A output
- Fault tolerant, internally fused
- Isolated power supply design
- TuneLink Application
- Control the TuneLink audio link
- Control the FM Transmitter
- SpeedTune:
- Uses GPS data to find the best open FM station for your current location
- Easy touch screen interface
- Sharing Modes:
- OFF - your TuneLink is private and cannot be shared
- FREE - your TuneLink is available to link to other Bluetooth devices
- ASK - your TuneLink is available to others, subject to your approval
- TUNELINK - automatically add other devices to the shared play queue
Power Consumption
- Average: < 1.2 Watts @ 12 VDC typical
- Peak while Peak: 11 Watts @ 12 VDC maximum
Physical / Environmental
- Size:
- Operating Temperature: 0° to +50 ° C
- Operating Humidity: 5% to 95% relative, non-condensing
|
|
