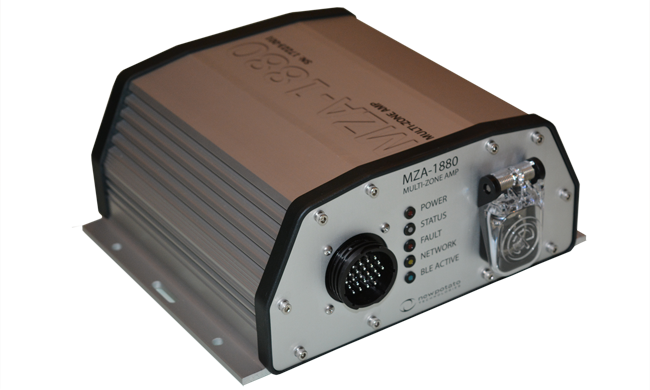

MZA-1880 INDUSTRIAL AMPLIFIER
MZA-1880 INDUSTRIAL AMPLIFIER
The MZA Family of Amplifiers are the most advanced Multi-Zone Amplifier available on the market today.
Designed to widthstand the harshest environments and delivery audio power at high-fidelity into standard 16/8/4 Ohm loads.
Smaller form factor for installations where only low impedance loads are used at lower power levels.
Take a deeper look at this product and all of its associated details, features, and related information
Built upon twenty years of successful deployments within the metropolitan transit space, this next generation digital device brings your installation or application up to the 21st century with a fully forward-looking, yet backward-compatible solution.
A robust and efficient CLASS-D amplifier platform, powered by Texas Instruments PurePath™ technology, the MZA-1880 provides state-of-the-art audio quality for any program material and will drive both 18V and direct connection loudspeaker loads. With flexible audio and control inputs, it provides four independent zone outputs that will interface to most any application.
Built to last, it incorporates a well-defended wide-range DC input power system, over-engineered ESD protection on all connections, transformer input and output isolation for ground loop prevention, and is protected by an aluminum-alloy extruded enclosure that is IP67 rated and meets IEC 60068-2 environmental standards.
Advanced features include 24-bit analog-to-digital conversion, 32-bit digital signal processing, digital filtering, automatic adjustment of announcement level referenced to ambient noise, dynamic fault protection, and advanced diagnostics such as real-time signal level, supply voltage, supply current, and load impedance monitoring.
Equipped with advanced communications capabilities, the MZA-1880 includes a high speed Ethernet interface and Bluetooth 4.0 interface; both protected by industry standard encryption and advanced security measures. The Ethernet link can be used for control, diagnostics and streaming audio to the device. The Bluetooth interface securely connects to our configuration and diagnostics mobile application (iOS and Android platforms) for real time signal metering, control status reporting, dynamic level adjustment, loudspeaker configuration, and system diagnostics.
Nominal: 2x60W, 4 Ohm
Maximum: 2x80W, 4 Ohm
Direct 4-16 Ohm: 4
±0.5dB: 70 Hz to 12 kHz
±1.0dB: 55 Hz to 15 kHz
±1.5dB: 45 Hz to 20 kHz
< 0.05%
96dB, analog inputs
>90 dB unweighted
iOS and Android Devices
Unit Configuration & Diagnostics
Encrypted Key Exchange
Re-programmable Keys
Audio Level Meters
Zone Control and Feature Status
Power System Monitoring
Fault Indications
Uses Loudspeakers as microphones
Adjustable 20 dB Range Control
Fixed Gain During Announcements
Body
9.4 x 9.8 in
Face
9.4 x 8.3 x 4 in
MZA-1880
Stereo
MZA-1880
Input
MZA-1880
N/A
MZA-1880
M+L/R
MZA-1880
Z1 - 18v | Z2 - 18v
Z3 - 18v | Z4 - 18v
MZA-1880
80+80
Wiring & Load Fault Detection
Load Impedance Monitoring
Power Rail Voltage and Current
Power, Audio Signal, Control
Compatible with Legacy Wiring
M12 or RJ-45 Receptacle with Cover
DHCP, TCPIP, UDP
AES 256 Bit Encryption
Control and Streaming Audio
Event Logging
Software Updates
Bluetooth 4.0
Stealth and Secure Connectivity
Power, Status, Fault, Network, BLE Active
Integral Thermal Management
IP67 Rating
Size: 9.4 x 4.0 x 9.8 inches
Weight: 7.2 lbs.
Flexible Slot and Hole Pattern
1/4-20 Stud
Temperature: -40 °C to +85 °C
Humidity: 0 ~ 100% (Condensing)
DC Input: 24 VDC to 90 VDC
DC Input: 12 VDC
30-40 VDC: > 75%
Conforms to EN50155 Standards
FCC Part 15C Certified
Meets IEC 60068-2 Standards
Manufactured to ISO 9000 Standards
